All Seasons

Hot/cold and decentralised air exchange, without external or internal units: all-in-one solution for winter heating, summer air conditioning and annual cycle indoor air quality.

Helty All Seasons air conditioning without external unit
Helty All Seasons hot cold air conditioning with HRV

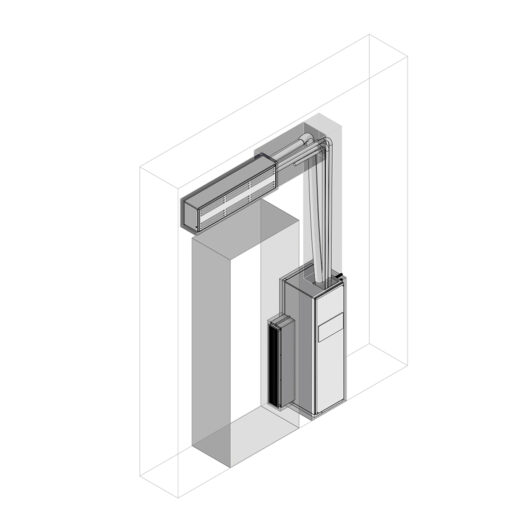

all seasons-heat-pump installation diagram
Helty All Seasons hot cold air conditioning with HRV
all seasons-heat-pump installation diagram

Decentralised air/air heat pump conditioning with integrated HRV for the best comfort in every seasons

All Seasons is the complete and industrialised solution designed for indoor comort by combining a decentralised air/air heat pump conditioning with integrated HRV, without external or internal units with no impact on building architecture.

All Seasons is the complete solution designed to provide a single system for annual cycle air conditioning (winter heating, summer air conditioning and indoor air quality) in every applications where the management of thermohygrometric comfort and air quality on a roomby-room basis is important: where and when it is needed.

Ok Room-by-room air conditioning and air echange
Soluzione invisibile - Design minimal Zero aesthetic impact on the facade
Ventilazione - Portata aria Heating, cooling and indoor air quality
Sensore CO2 VOC Indoor air quality sensors

Price upon request

Do you want to receive an offer?

Get a quote

Helty All Seasons is a all-in-one solution characterized by decentralised air/air heat pump conditioning with integrated HRV specifically designed for buildings with very high energy efficiency and nZEB.

Air conditioning and air quality in an all-in-one solution

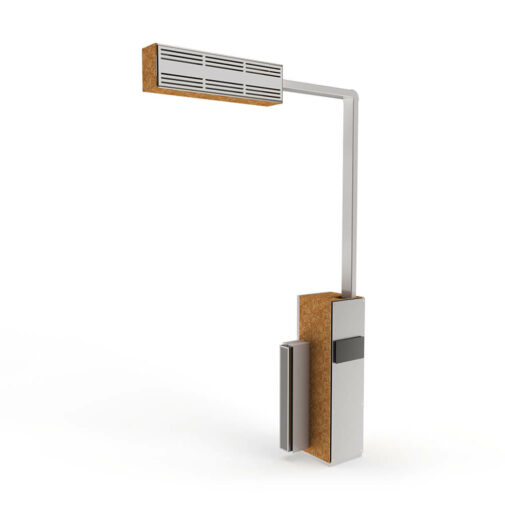

All Seasons is composed of a comfort diffusion unit and a trivalent unit for comfort and air purification.

The comfort diffusion unit is positioned flush with the wall for the management of hot and cold air flows. The trivalent unit with heat pump is based on DC inverter technology and equipped with an R32 refrigerant circuit, with attached HRV (heat recovery ventilation) unit equipped with air filtration and countercurrent flow heat exchanger.

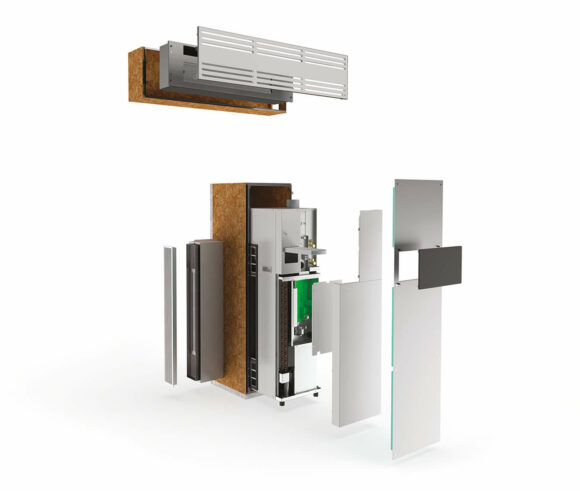

Helty All Seasons climatizzatore uscita in luce esploso
Helty All Seasons set inside

Maximum flexibility, zero impact on the building architecture

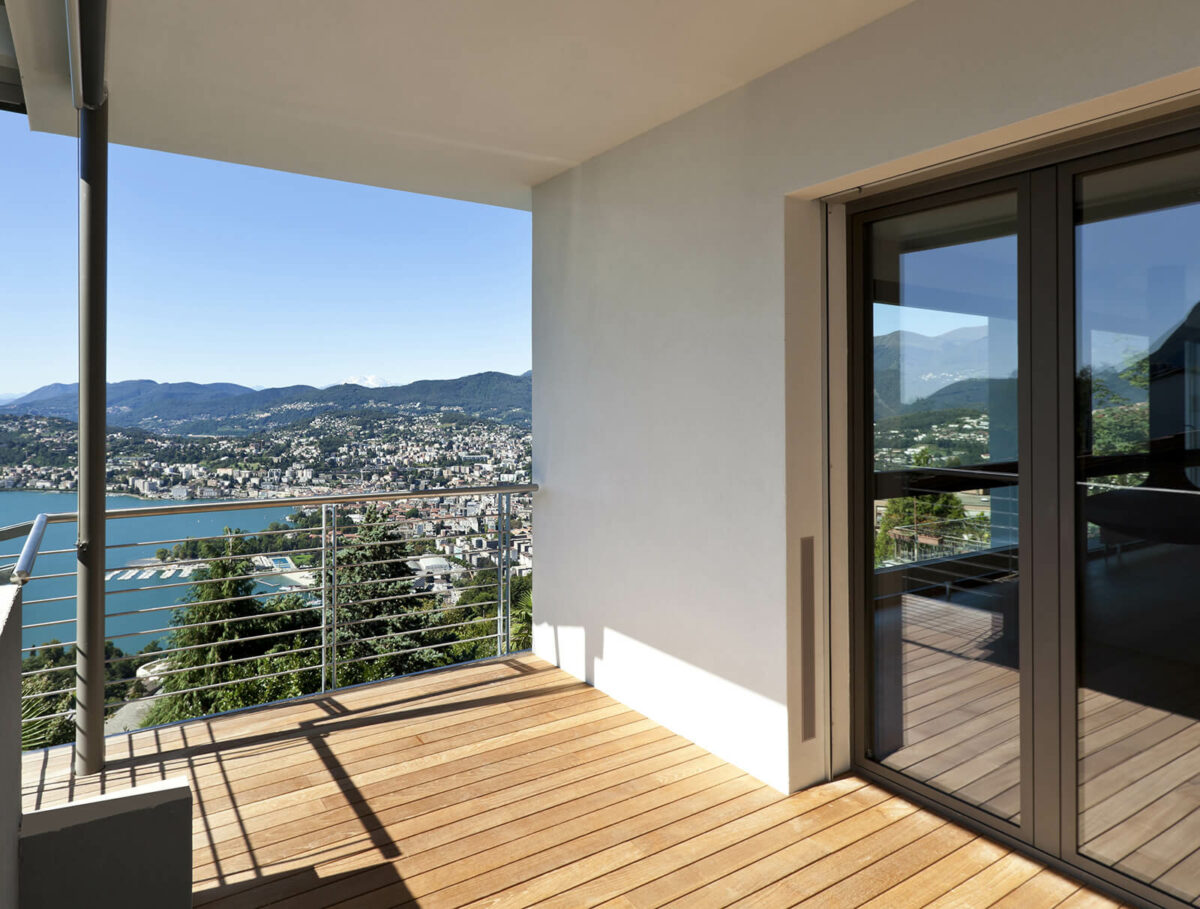

The architecture of the building is preserved thanks to the intake and exhaust grill available with reveal outlet positionable on the right or left of the window, depending on the design requirements.

External view version with reveal outlet is also available characterised, also in this case, by no external and internal units with no impact on the architecture.

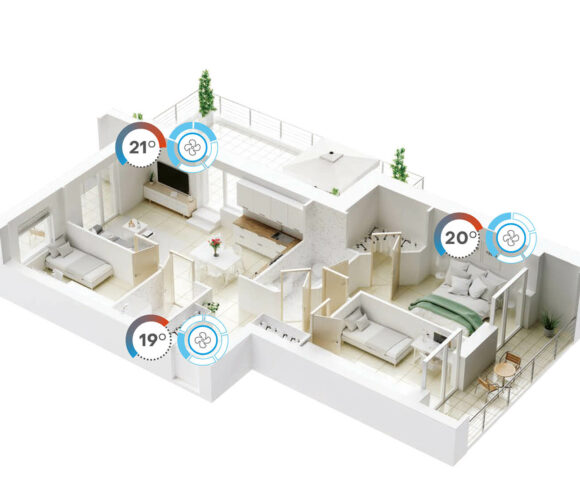

System for thermohygrometric comfort: Warm, cold and air exchange: only where and when you need it

All Seasons is the complete solution providing a single system suitable for managing winter heating, summer air conditioning and dehumidification and indoor air treatment wherever the management of thermo-hygrometric comfort and room-by-room air quality is important, following a decentralised and intelligent logic: NZEB residential buildings; properties for tourist use; small tertiary properties; offices; hotels & B&Bs prefabricated modular constructions.

Helty All Seasons decentralized air conditioning

Technical data

CharacteristicsU.M.Value
Summer Air Conditioning
Energy efficiency class   A++
Pdesign W 1800
SEER   6,1
Yearly energy consumption kWh/a 103
Cooling capacity for air conditioning (min / nominal / max) W 370/1800/2300
Power consumption for air conditioning (nominal) W 527
EER Energy Efficiency (nominal)   3,42
Winter Air Conditioning
Energy efficiency class   A+
Pdesign W 1600
SCOP   4
Yearly energy consumption kWh/a 559
Heating capacity for air conditioning (min / nominal / max) W 465/1600/2900
Power consumption for air conditioning (nominal) W 408
COP Energy Efficiency (nominal)   3,92
HRV
Air flow rate m3/h 10/22/33/41/57/70
Power consumption W 3/4/7/9/16/23
Heat exchanger   enthalpy
Energy efficiency class (cold / temperate / hot)   A+ / A / E
/ temperate / hot) A+ / A / E Heat recovery efficiency % 90
Filters (intake / extraction)   F7 / G4
